Drone Hyperspectral Camera Water Quality Monitoring

Urban inland rivers and small waterways are difficult to monitor with traditional methods. Their channels are narrow, the shoreline environment is complex, and pollution events can appear suddenly and locally. In these settings, manual sampling and fixed monitoring stations often struggle to provide the coverage, speed, and spatial detail needed for refined management. This is where a drone hyperspectral camera for water quality monitoring becomes especially valuable.

In a recent project on the Zhenjiang Ancient Canal, the FS-60C airborne hyperspectral camera system was deployed to support rapid water quality inversion, pollution hotspot detection, and source-tracing analysis. The project demonstrated a practical path for applying UAV hyperspectral imaging to river and lake water inspection, especially in narrow urban waterways where conventional approaches leave blind spots.

Why Urban Rivers Need a Faster and Wider Monitoring Method

Urban rivers, canals, and other inland micro-waterways are under constant pressure from stormwater runoff, mixed drainage networks, shoreline activity, and intermittent discharge. These factors create a monitoring challenge that is both technical and operational.

Key difficulties in traditional water quality monitoring

Traditional field-based monitoring has several limitations in urban river scenarios:

Sampling points are limited and discontinuous
Large areas cannot be observed at once
Manual collection cycles are relatively slow
Local anomalies may be missed between sampling intervals
Pollution hotspots are difficult to visualize spatially
Emergency response is constrained by time lag

For environmental managers, this means that point-based data may not fully represent the real condition of the river corridor. A polluted outfall may affect only a short section of the water surface, while nearby areas remain relatively stable. Without spatially continuous data, these localized events can be easy to miss.

Why hyperspectral imaging matters

A hyperspectral camera water quality monitoring system captures continuous spectral information across many narrow bands. Compared with conventional RGB or multispectral imaging, hyperspectral data offers stronger sensitivity to subtle changes in water composition.

When mounted on a drone, the system combines:

high spatial resolution
rapid deployment
flexible flight planning
multi-parameter inversion capability
full-reach inspection rather than point-only sampling

This makes it well suited for river water inspection by drone, particularly in narrow and complex urban environments.

Project Background: Zhenjiang Ancient Canal Water Quality Monitoring

The Zhenjiang Ancient Canal is both an ecological corridor and a culturally significant urban waterway. Because it is influenced by first-flush stormwater runoff, drainage network misconnections, and surrounding urban land use, the river may experience localized fluctuations in water quality.

To support daily management and pollution control, the project focused on monitoring several key parameters:

Total Nitrogen (TN)
Total Phosphorus (TP)
Dissolved Oxygen (DO)
Ammonia Nitrogen (NH3-N)
Chemical Oxygen Demand (COD)
Chlorophyll-a (Chl-a)

Core monitoring objectives

The project was designed around three practical goals:

Acquire synchronized spectral and water quality data across the river corridor and establish stable inversion relationships.
Visualize the spatial distribution of multiple water quality parameters and identify pollution hotspots.
Verify the suitability and reliability of the FS-60C hyperspectral camera in narrow urban river scenarios.

This is an important distinction. The project was not only about collecting imagery; it was about proving that a drone-based hyperspectral system can support real urban water management workflows.

Data Acquisition Workflow for Drone Hyperspectral Water Quality Monitoring

A strong water quality inversion result depends on one thing above all: field data and airborne data must be aligned in both time and space. No shortcuts here—spectral models get grumpy when the sampling and imagery disagree.

Synchronized sampling and imaging

Sampling points were arranged along several sections of the canal, including:

Huju Bridge to Tashan Road
Jiefang Road to Tashan Road
Guyang Road to Chuqiao Road

The project team used a combination of:

unmanned surface vessel sampling
manual shoreline sampling
RTK positioning for accurate coordinates
drone flights along planned routes with the FS-60C hyperspectral camera

This ensured that the laboratory water quality measurements corresponded closely to the hyperspectral image pixels collected at the same locations.

Preprocessing workflow

Raw hyperspectral imagery requires a rigorous preprocessing chain before it can be used for reliable water quality inversion.

1. Radiometric calibration

Digital number values were converted into radiance or reflectance data.

2. Reflectance correction

A standard white reference panel was used to improve the accuracy and consistency of reflectance measurements.

3. Shadow removal

Because urban rivers are often bordered by trees, bridges, walls, and buildings, shadows are common. The project applied compensation based on the HSI color space to reduce shadow interference and restore useful spectral information.

4. Water body extraction

To isolate pure water pixels and remove land interference, the team combined:

NDWI-based extraction
manual interpretation

This step is crucial in narrow river environments, where mixed pixels from banks, vegetation, and built structures can significantly affect the spectral signal.

Spectral Analysis and Water Quality Correlation

Once clean water spectra were extracted, the next step was to analyze how spectral features related to measured water quality indicators.

Original vs. differential spectra

The project compared relationships using:

original reflectance spectra
differential-processed spectra

The results showed that differential spectral processing significantly improved correlation between the spectral data and several water quality parameters. This is common in hyperspectral water research because derivative features can reduce background effects and highlight subtle spectral responses.

Observed relationships

The analysis identified several useful trends:

DO and NH3-N showed strong negative correlation
TDS and electrical conductivity showed strong positive correlation
Some nutrient-related parameters displayed usable response patterns in selected bands

These relationships helped support multi-parameter joint inversion, rather than treating each parameter in complete isolation.

Inversion Models and Monitoring Results

This stage is where the project moved from “interesting imagery” to “actionable environmental data.”

Model construction

Using spectral bands with relatively high correlation, the team compared:

empirical models
machine learning models

The results indicated that the FS-60C hyperspectral data supported stable and practical inversion performance.

Key findings

Several outcomes stood out:

TN and TP could be modeled with relatively stable polynomial relationships
Random forest performed robustly in multi-parameter inversion
Validation metrics showed good control of coefficient of determination and error
The inversion results remained relatively consistent across different river sections
The models demonstrated promising transferability under similar urban canal conditions

For B2B readers, this matters more than a buzzword-heavy description. Stability, validation quality, and transferability are exactly what determine whether a technology is usable beyond a demo flight.

Spatial Distribution Mapping and Pollution Hotspot Detection

One of the biggest advantages of a drone hyperspectral camera for river inspection is that the inversion model can be embedded into the image workflow to produce spatial maps, not just point results.

Mapped indicators

The project generated spatial distribution maps for:

TN
TP
DO
COD
other key indicators linked to water quality status

What the maps revealed

The resulting maps clearly highlighted several patterns:

river sections near residential areas and schools showed relatively concentrated indicator patterns
areas near outfalls exhibited local anomalous high-value zones
shorelines with vegetation cover showed more stable parameter distribution

Most importantly, the mapped trends were consistent with field sampling observations. That consistency is what gives spatial inversion real operational value: it helps environmental teams quickly identify hotspots and prioritize source-tracing work.

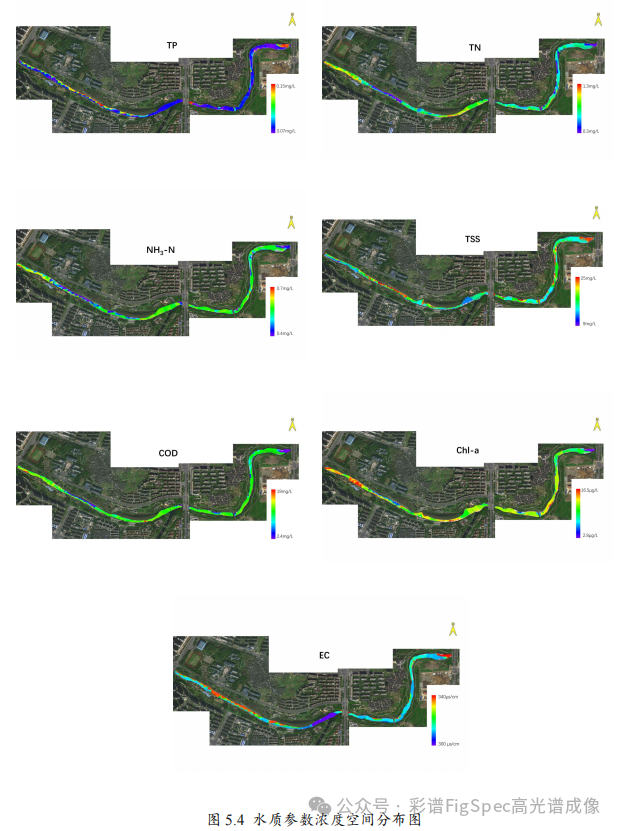

Water quality inversion map generated from hyperspectral imagery

Why Drone Hyperspectral Monitoring Works Well in Narrow Urban Waterways

The Zhenjiang case highlights several reasons why a UAV hyperspectral water quality monitoring system is particularly suitable for urban micro-river environments.

1. Wide-area coverage

A single flight can cover the full river reach, reducing the blind spots of point-based monitoring.

2. Fast response

Imagery and preliminary inversion results can be obtained on the same day, supporting rapid action when anomalies appear.

3. Rich data dimensions

Continuous spectral data allows multiple water quality indicators to be assessed in a coordinated workflow, reducing repeated field operations.

4. Strong adaptability

Flight routes and operating heights can be adjusted flexibly for narrow river corridors, built-up shorelines, and complex inspection conditions.

In practice, this shifts water management from point monitoring to surface-based monitoring, which is a major operational upgrade.

Application Value for River and Lake Water Inspection

Although this project focused on an urban canal, the workflow has broader applicability in inland water management.

Suitable application scenarios

The same technical route can be extended to:

routine inspection of urban rivers, canals, and landscape water bodies
emergency monitoring during rainy seasons and flood periods
dynamic assessment of black-odor water treatment and ecological restoration
pollution source investigation near industrial parks and residential drainage networks
screening of mixed pipe connections and outfall impacts
lake water inspection using drone hyperspectral imaging
small reservoir and enclosed water body monitoring

This broader relevance helps the article rank not only for river-focused terms but also for lake water inspection drone searches.

Why the FS-60C Supports Practical Water Environment Management

The core value of the FS-60C in this case is not just that it captures hyperspectral data. It is that the data can be turned into a manageable workflow for environmental operations.

Practical management benefits

The system supports a full chain of needs:

rapid monitoring
anomaly warning
pollution hotspot detection
source tracing
governance effect evaluation

Because hyperspectral data integrates both image and spectral information, it enables a “map + parameter” workflow that is easier for decision-makers to interpret than isolated laboratory tables alone.

For agencies and service providers, that means better communication, faster screening, and more targeted follow-up inspection.

From Point Monitoring to Surface Monitoring: A Scalable Path Forward

The Zhenjiang Ancient Canal project shows that an airborne hyperspectral camera for water quality monitoring can provide stable technical support for the entire management cycle of urban small waterways. In narrow river channels with complex shorelines and rapidly changing conditions, drone hyperspectral systems offer a compelling combination of speed, coverage, and analytical depth.

As environmental management moves toward higher-frequency inspection and more refined control, drone-based hyperspectral river and lake monitoring is becoming a practical tool rather than an experimental concept. For urban inland waters, that shift is especially significant.

The real takeaway is simple: when managers need to move beyond scattered sampling points and toward full-reach visualized assessment, a drone hyperspectral camera provides a powerful and scalable answer.

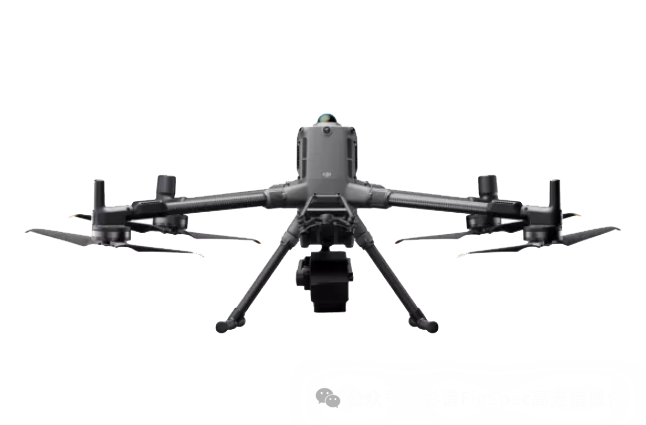

Our DJI M400 Drone Airborne Hyperspectral Imaging System

To support fast and reliable drone hyperspectral camera water quality monitoring, we also offer our DJI M400 drone airborne hyperspectral imaging system, designed for river, lake, and inland water inspection scenarios that require both spectral accuracy and operational flexibility.

This system combines UAV mobility with high-density spectral acquisition, making it suitable for applications such as:

urban river and canal water quality monitoring
lake and reservoir inspection
pollution hotspot detection and source tracing
ecological restoration and treatment-effect assessment

Key specifications

Spectral range: 400–1000 nm
Spectral resolution: 2.5 nm
Spectral bands: 1200
Spatial pixels: 1920
