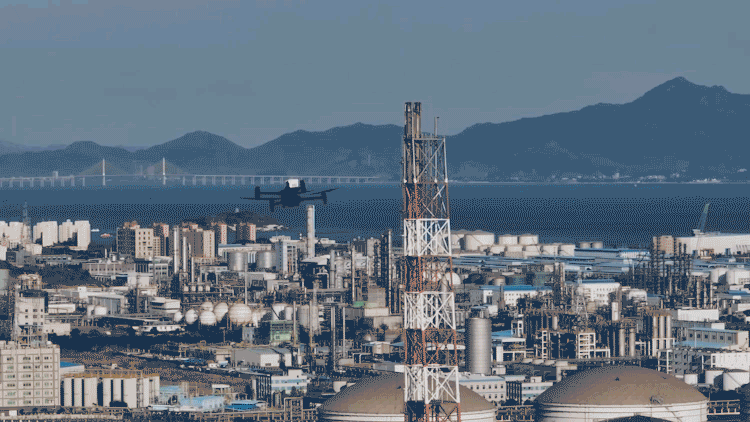

DJI M30 drone gas detection sensor for air quality pollution monitoring and harmful gas detection, develop on DJI SDK, with intelligent visual data analysis software, and high-quality 3D gas concentration distribution data obtained in real-time can provide timely and effective decision support for environmental protection, emergency, smart city, oil and gas plant and pipeline inspection.
Des informations opportunes, précises, géoréférencées et visuelles sur la concentration de gaz sont essentielles pour la prise de décision dans de nombreux scénarios. Choisir les bons outils permet d'en faire plus avec moins d'effort.

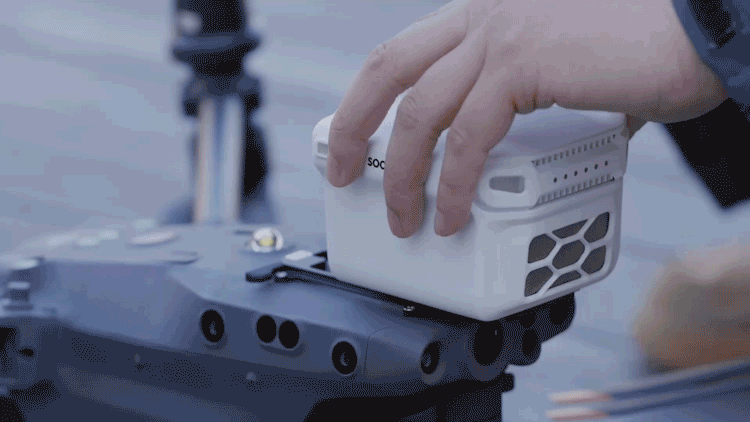

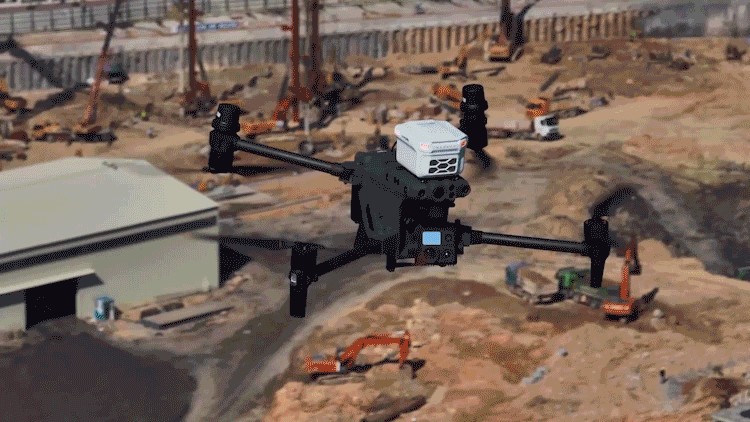

the new Mini2 air gas detection sensor works seamlessly well with the DJI M30 series aircraft. Together, they are your right-hand man for obtaining high-quality 3D gas distributions. The all-new industrial and structural designs bring significant reductions in its size and weight. The new quick-release mount and cable connection, shorten the operation preparation time even further, maximizing M30’s flight time.
Under its compact body, Mini2 air pollution sensors deliver uncompromised performance. It supports simultaneous monitoring of up to 9 gas parameters. The new RGB warning lights have a larger visible angle, making surrounding people perceive the change of gas concentration more conveniently.
Sniffer4D Mini2 supports DJI’s new Cloud API, bringing an unprecedented amount of visual information and user experience to the DJI M30’s large-screen remote control. By combining with an automated drone dock, Mini2 gas detection sensor and DJI M30 can further reduce the cost of acquiring environmental data. This opens up infinite possibilities for truly unmanned, high-frequency data acquisition in many applications.
Spécifications :
Taille | 102X103X72mm |
Lester | 300 grammes |
Port d'interface | DJI PSDK V3.0 |
Compatible avec | Drone DJI Matrice 30 |
Transfert de données | Liaison de données DJI et 4G |
Réseau | Connectivité 4G/3G/EDGE/GPRS |
Installation | Libération rapide |
Paramètres de détection disponibles | PM2.5 ,PM10 , SO2 ,CO, NO2 O2 ,O3 ,VOCs ,LEL / CH4 CO2 , HF ,H2S ,NH3 ,HCl ,H2 Cl2 ,PH3, NO ,HCN , High-Resolution CH4 ,Odor (OU) |
Détection de gaz max. Paramètres par capteur | 9 |
Principe de détection | Diffusion laser / diffusion de la lumière, électrochimie, photoionisation, infrarouge non dispersif |
carte SD | 32 Go |
Récupération de données | Algorithme |
Température de fonctionnement | ’-20℃ to 55℃ |
Poids | 3 kg |
---|---|
Dimensions | 22 × 22 × 22 cm |
Version standard | Version A : PM2,5, PM10, O3, NO2, CO, SO2, COV, Version B : PM2,5, PM10, O3, NO2, CO, SO2, capteur de personnalisation |
