DJI M350 Drone Tethered System with Emergency Lighting Aerial illumination

DJI M350 Drone tethered system with LED Light for Aerial illumination, integrated ground power supply system and air power module, along with four high-brightness LED matrix lights, enable the drone to remain on long-duration flights, providing strong support for aerial surveillance, and aerial photography, and nighttime emergency lighting.

The tethered ground power supply system powers the drone through tether cables, allowing for long-duration, uninterrupted hovering in the air. It features over-voltage, over-current, over-temperature, and output short-circuit protection, ensuring a safe power supply for long-duration aerial operations.

The DJI M350 tethered lighting drone utilizes this technology, making it particularly suitable for tasks that require continuous, long-duration operation during the night time, for emergency outdoor lighting, such as emergency rescue and infrastructure monitoring, ensuring sustained lighting support during critical moments.

Application:

Emergency Rescue: The DJI M350 tethered lighting drone can provide continuous, efficient illumination in emergencies like disasters or accidents, aiding rescue personnel in search operations during nighttime or low-light conditions.

Public Safety: In large public events, security patrols, and traffic accident management, it provides aerial lighting and monitoring, assisting law enforcement in maintaining public safety.

Infrastructure Monitoring: Used for nighttime lighting and monitoring of infrastructure such as bridges, tunnels, and construction sites, ensuring safety and progress management during construction.

Film Production: Provides stable, continuous lighting for filming in nighttime or low-light scenes, supporting high-quality shooting results.

Sports Events and Entertainment: Offers long-duration aerial monitoring and shooting, while also providing stable, continuous lighting.

Features:

1. Long-term flight, uninterrupted power supply
2. Quickly deployment.
3. Multiple protections,  overvoltage, overcurrent, overtemperature protection, and short circuit protection.
4. Max Working height: 100M (300ft)
5.  Easy to carry and move, backpack design.
6. 4 X high-power LED matrix lights
7. Max lighting power 600W,
8. 1263㎡ lighting area,
9. Turn on/ off the LED lighting via the DJI controller in-ground,

Specs:

Specification	Details
Air Power Supply module (installed on the drone)
Product Name	Aerial Power Supply Device
Product Weight	500g
Output Voltage	50+2V DC
Rated Power	2500W
Output Current	52A
Overcurrent Protection	62A
Overtemperature Protection	80°C
Operating Humidity	5%~95%

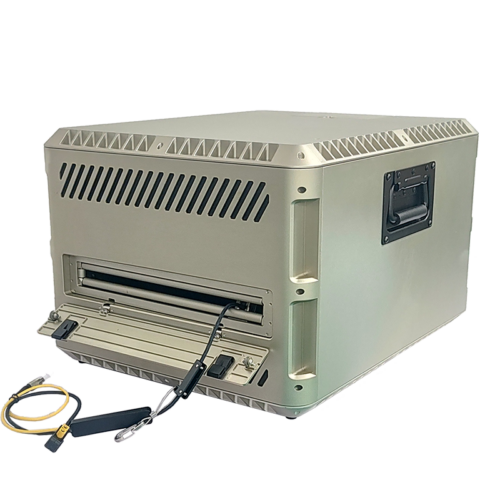

Ground Power Supply system
Product Name	Ground Power Supply Device
Product Weight	<14kg
Output Voltage	400-430V DC
Rated Power	3000W
Input Voltage	220V AC
Total Cable Length	105m
Operating Temperature	-20°C~50°C
Protection Features	Over-voltage, Over-current, Over-temperature Protection



LED Matrice Lights
Size	184mmx49mmx19mm
Weight	210g
Luminous flux	18500lm士3%
FOV	43°
lighting distance	10M	30M	50M
Illumination area	53㎡	458㎡	1263㎡
Center Illuminance	640Lux	63Lux	18.5Lux
Voltage	48V
Power	150W X 4
Working temperature	-15℃ ~ 50℃
