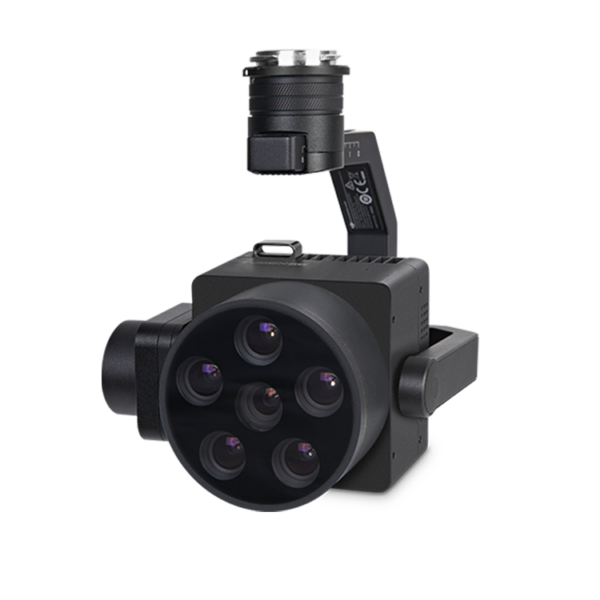

Multispectral imaging camera for DJI Matrice 400 drone

The DJI Matrice 400 drone multispectral imaging camera, developed on the DJI SDK to deeply integrate with the DJI M400 RTK drone. Housed in a durable aluminum alloy body with a scratch-resistant sapphire optical window, it delivers plug-and-play convenience and unparalleled imaging precision. If you are looking for a highly reliable multispectral camera for DJI M400 ,  unlocks the full potential of your aerial data collection.

Featuring an innovative 5 Multispectral + 1 RGB sensor configuration, this drone multispectral sensor captures ultra-high-resolution data (up to 12.3MP for RGB and 3.2MP for multispectral channels). With millisecond-level synchronized imaging, video-level detection and result output, and on-board real-time spectral inversion, it is the ultimate payload for precision agriculture, forestry monitoring, river and lake ecology, and target recognition.

Key Features

• Perfect DJI Integration: Custom-designed as a plug-and-play payload for DJI M350 RTK and Matrice 400, utilizing the DJI X-Port for direct power and seamless control via DJI Pilot.
• Premium Optics & 6-Sensor Array: Combines 5 multispectral channels (12-bit global shutter) with 1 high-res RGB channel (8-bit rolling shutter). It features a large aperture, low-distortion, broadband transmission all-glass lens. All channels feature millisecond-level synchronized imaging.
• Real-Time Processing & Video Output: Supports on-board real-time spectral inversion and video-level detection, drastically reducing post-processing time while providing live video output.
• Standard DLS Included: Comes standard with a Downwelling Light Sensor (DLS) to continuously calibrate for ambient light changes during flight, ensuring absolute data accuracy.
• Customizable Spectral Bands: Standard configuration covers 450nm to 840nm, with 19 optional band customizations available within the 400nm~1000nm range to suit specific research needs.
• Versatile Trigger Modes & Storage: Supports overlap rate, timer, and flight controller trigger modes for flexible mission planning. Data is saved directly to the included 128GB high-speed solid-state USB drive.

Typical Applications As a versatile precision agriculture drone camera and environmental sensor, the AQ600 Pro excels in multiple scenarios:

• Crop Growth Assessment (NDVI): Quantify vegetation canopy status and assess crop health using NDVI and LAI indices. Provides critical data for irrigation, fertilization, and yield estimation.
• Vegetation Coverage Evaluation: Build vegetation indices to map spatial distribution and area statistics for forestry and ecological research.
• Black and Odorous Water Monitoring: Utilize characteristic spectra to classify and monitor urban water pollution, assisting in pollution source tracking.
• Water Eutrophication Monitoring: A powerful water quality monitoring drone sensor that evaluates nutrient levels in lakes and rivers, analyzing the impact of agricultural runoff and aquaculture.

What’s in the Box (Product List)

• Multispectral  Camera
• Downwelling Light Sensor (DLS)
• Calibration Gray Panel
• 128GB High-Speed Solid-State USB Drive
• Hard Carrying Case
